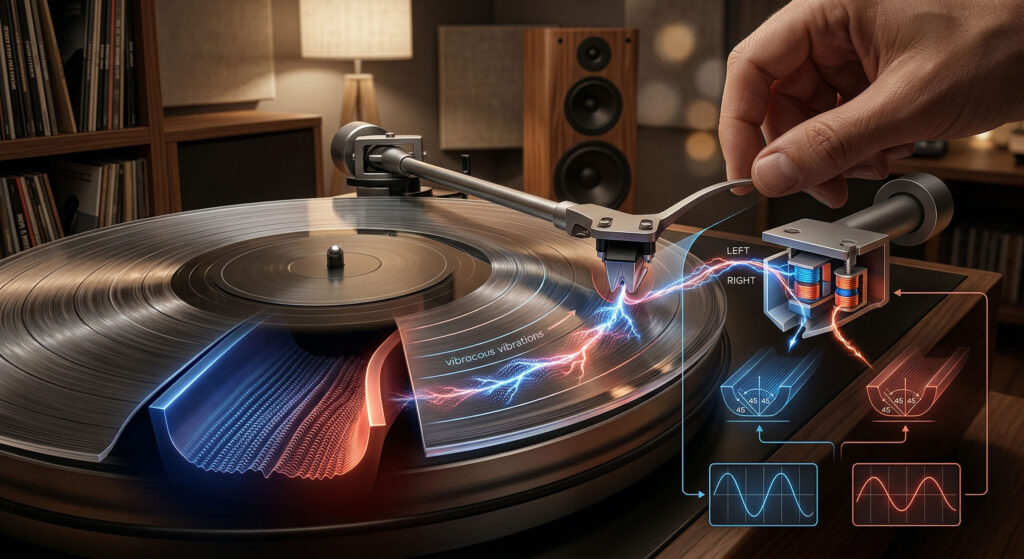

A vinyl groove has two walls, each angled at 45 degrees — and each wall carries one channel of stereo audio. The stylus tip touches both walls simultaneously, vibrating in two directions at once, and the cartridge separates those two motions into left and right channels. All of this happens in a groove thinner than a human hair, at speeds of up to several centimetres per second.
One of the most elegant engineering problems in audio history was this: how do you store two separate channels of sound in a single physical groove, so that one needle can read both simultaneously? The solution — worked out by Alan Blumlein at EMI in 1931 and standardized for commercial stereo records in 1958 — is a piece of geometry so clever it still delights engineers today.
How Mono Recording Works First
Before stereo, all records were mono — one channel, one speaker. The groove on a mono record only moves in one direction: side to side, like a snake seen from above. As the stylus follows this lateral wriggling, it generates one electrical signal. Simple, elegant, and single-channel.
The 45/45 System — Two Channels in One Groove
The problem with simply using “lateral” (side-to-side) for one channel and “vertical” (up-and-down) for the other was compatibility: a mono record player would only pick up the lateral channel and miss the vertical one entirely. The solution was to rotate both channels by 45 degrees — which is why the system is called 45/45.
Left wall — modulations encode the left channel audio signal at 45° to the vertical
Right wall — modulations encode the right channel audio signal at 45° to the vertical (and 90° to the left wall)
Stylus tip — contacts both walls simultaneously. Two walls vibrate the stylus in two diagonal directions. The cartridge resolves these into two separate electrical signals.
Mono compatibility — the 45° angle means that horizontal (lateral) motion equals L+R combined — so a mono cartridge still reads both channels blended as one. This is why you can play a stereo record on a mono player without losing half the music.
The genius of the 45/45 arrangement is that it simultaneously solves two problems. It provides full stereo separation (each wall independently carrying its channel’s modulations), while maintaining backward compatibility: a stylus that only responds to side-to-side motion will pick up the sum of both channels — which is exactly what you want from mono playback.
How the Cartridge Separates the Two Channels
The stylus tip sits in the groove touching both walls. As the record spins, the modulations in each wall push the stylus in slightly different diagonal directions — up-left from the left wall, up-right from the right wall. The cantilever transmits these combined movements to the cartridge body.
Inside a Moving Magnet cartridge, two coils of wire are wound at 90 degrees to each other — mirroring the 90-degree angle between the groove walls. As the magnet moves diagonally, it induces current in each coil proportionally: a motion pushing toward the left-wall angle induces current in the left coil; a motion toward the right-wall angle induces current in the right coil. Two signals emerge from two coils — left and right channels — from one stylus moving in one groove.
The 45/45 system encodes stereo as two signals: L+R (the mono sum, carried as pure lateral/horizontal stylus motion) and L−R (the stereo difference, carried as vertical motion). A mono cartridge reads only horizontal motion — perfectly picking up L+R, which sounds like a correct mono blend of both channels. A stereo cartridge reads both dimensions and mathematically recovers L and R separately. This is why stereo records play correctly on mono equipment and why the transition from mono to stereo in the late 1950s was so smooth for listeners.
Mono Records vs Stereo Records — What Changes
Inner Groove Distortion — Why the Last Track Sounds Different
As the stylus moves from the outer edge toward the center of a record, the groove it follows gets shorter with each revolution — but the music encoded in it doesn’t slow down. This means the stylus must track the same groove modulations at progressively slower linear velocities near the center. The groove modulations effectively become more compressed spatially, making them harder to trace accurately.
Different groove lengths
What the Groove Actually Is — The Numbers Are Astonishing
The stereo separation your Arkrocket record player produces — the sense of instruments positioned left, right, and between the speakers — is entirely a function of how well the cartridge reads the two groove walls independently. The Rocket MM cartridge (AR-N60) is designed for accurate channel separation: each coil independently picks up its groove wall’s signal with minimal crosstalk between channels. Correct tonearm alignment, anti-skate setting, and tracking force all directly affect how cleanly the two channels are separated — which is why setup matters for the stereo image, not just for sound quality in general.
The 45/45 stereo groove system is one of the most elegant engineering solutions in the history of recorded music — a single physical groove carrying two independent channels of audio, readable by one stylus tip, with built-in mono compatibility, all invented before the Second World War and essentially unchanged since. Every time you hear the Arkrocket record player place a guitar on the left and a piano on the right, you’re experiencing a geometry problem solved in 1931, pressed into plastic, and traced by a diamond point at nanometre precision. It earns a moment of appreciation.
